by Jun He, Akash Dwivedi, Natallia Dzenisenka, Snehal Chennuru, Praneeth Yenugutala, Pawan Dixit
At Netflix, Information and Machine Studying (ML) pipelines are broadly used and have develop into central for the enterprise, representing numerous use circumstances that transcend suggestions, predictions and information transformations. Numerous batch workflows run every day to serve numerous enterprise wants. These embrace ETL pipelines, ML mannequin coaching workflows, batch jobs, and many others. As Large information and ML turned extra prevalent and impactful, the scalability, reliability, and value of the orchestrating ecosystem have more and more develop into extra vital for our information scientists and the corporate.
On this weblog publish, we introduce and share learnings on Maestro, a workflow orchestrator that may schedule and handle workflows at an enormous scale.
Scalability and value are important to allow large-scale workflows and help a variety of use circumstances. Our present orchestrator (Meson) has labored nicely for a number of years. It schedules round 70 1000’s of workflows and half one million jobs per day. Resulting from its reputation, the variety of workflows managed by the system has grown exponentially. We began seeing indicators of scale points, like:
- Slowness throughout peak visitors moments like 12 AM UTC, resulting in elevated operational burden. The scheduler on-call has to carefully monitor the system throughout non-business hours.
- Meson was primarily based on a single chief structure with excessive availability. Because the utilization elevated, we needed to vertically scale the system to maintain up and have been approaching AWS occasion kind limits.
With the excessive progress of workflows previously few years — rising at > 100% a yr, the necessity for a scalable information workflow orchestrator has develop into paramount for Netflix’s enterprise wants. After perusing the present panorama of workflow orchestrators, we determined to develop a subsequent era system that may scale horizontally to unfold the roles throughout the cluster consisting of 100’s of nodes. It addresses the important thing challenges we face with Meson and achieves operational excellence.
Scalability
The orchestrator has to schedule a whole lot of 1000’s of workflows, hundreds of thousands of jobs day-after-day and function with a strict SLO of lower than 1 minute of scheduler launched delay even when there are spikes within the visitors. At Netflix, the height visitors load generally is a few orders of magnitude greater than the typical load. For instance, quite a lot of our workflows are run round midnight UTC. Therefore, the system has to face up to bursts in visitors whereas nonetheless sustaining the SLO necessities. Moreover, we want to have a single scheduler cluster to handle most of person workflows for operational and value causes.
One other dimension of scalability to contemplate is the scale of the workflow. Within the information area, it’s common to have an excellent massive variety of jobs inside a single workflow. For instance, a workflow to backfill hourly information for the previous 5 years can result in 43800 jobs (24 * 365 * 5), every of which processes information for an hour. Equally, ML mannequin coaching workflows often include tens of 1000’s of coaching jobs inside a single workflow. These large-scale workflows would possibly create hotspots and overwhelm the orchestrator and downstream programs. Subsequently, the orchestrator has to handle a workflow consisting of a whole lot of 1000’s of jobs in a performant method, which can also be fairly difficult.
Usability
Netflix is a data-driven firm, the place key choices are pushed by information insights, from the pixel coloration used on the touchdown web page to the renewal of a TV-series. Information scientists, engineers, non-engineers, and even content material producers all run their information pipelines to get the mandatory insights. Given the various backgrounds, usability is a cornerstone of a profitable orchestrator at Netflix.
We want our customers to deal with their enterprise logic and let the orchestrator remedy cross-cutting considerations like scheduling, processing, error dealing with, safety and many others. It wants to supply totally different grains of abstractions for fixing comparable issues, high-level to cater to non-engineers and low-level for engineers to resolve their particular issues. It also needs to present all of the knobs for configuring their workflows to go well with their wants. As well as, it’s crucial for the system to be debuggable and floor all of the errors for customers to troubleshoot, as they enhance the UX and cut back the operational burden.
Offering abstractions for the customers can also be wanted to save lots of priceless time on creating workflows and jobs. We wish customers to depend on shared templates and reuse their workflow definitions throughout their workforce, saving effort and time on creating the identical performance. Utilizing job templates throughout the corporate additionally helps with upgrades and fixes: when the change is made in a template it’s robotically up to date for all workflows that use it.
Nonetheless, usability is difficult as it’s typically opinionated. Totally different customers have totally different preferences and would possibly ask for various options. Typically, the customers would possibly ask for the other options or ask for some area of interest circumstances, which could not essentially be helpful for a broader viewers.
Maestro is the subsequent era Information Workflow Orchestration platform to satisfy the present and future wants of Netflix. It’s a general-purpose workflow orchestrator that gives a completely managed workflow-as-a-service (WAAS) to the info platform at Netflix. It serves 1000’s of customers, together with information scientists, information engineers, machine studying engineers, software program engineers, content material producers, and enterprise analysts, for numerous use circumstances.

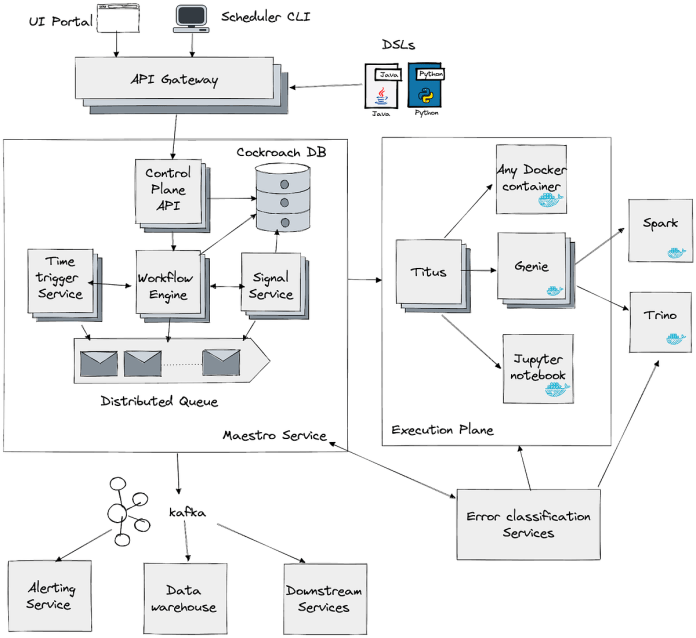

Maestro is very scalable and extensible to help present and new use circumstances and provides enhanced usability to finish customers. Determine 1 reveals the high-level structure.
In Maestro, a workflow is a DAG (Directed acyclic graph) of particular person items of job definition referred to as Steps. Steps can have dependencies, triggers, workflow parameters, metadata, step parameters, configurations, and branches (conditional or unconditional). On this weblog, we use step and job interchangeably. A workflow occasion is an execution of a workflow, equally, an execution of a step is named a step occasion. Occasion information embrace the evaluated parameters and different info collected at runtime to supply totally different sorts of execution insights. The system consists of three foremost micro providers which we are going to increase upon within the following sections.
Maestro ensures the enterprise logic is run in isolation. Maestro launches a unit of labor (a.okay.a. Steps) in a container and ensures the container is launched with the customers/purposes identification. Launching with identification ensures the work is launched on-behalf-of the person/software, the identification is later utilized by the downstream programs to validate if an operation is allowed or not, for an instance person/software identification is checked by the info warehouse to validate if a desk learn/write is allowed or not.
Workflow Engine
Workflow engine is the core part, which manages workflow definitions, the lifecycle of workflow situations, and step situations. It offers wealthy options to help:
- Any legitimate DAG patterns
- Common information move constructs like sub workflow, foreach, conditional branching and many others.
- A number of failure modes to deal with step failures with totally different error retry insurance policies
- Versatile concurrency management to throttle the variety of executions at workflow/step stage
- Step templates for frequent job patterns like working a Spark question or shifting information to Google sheets
- Assist parameter code injection utilizing personalized expression language
- Workflow definition and possession administration.
Timeline together with all state adjustments and associated debug information.
We use Netflix open supply undertaking Conductor as a library to handle the workflow state machine in Maestro. It ensures to enqueue and dequeue every step outlined in a workflow with at the very least as soon as assure.
Time-Based mostly Scheduling Service
Time-based scheduling service begins new workflow situations on the scheduled time laid out in workflow definitions. Customers can outline the schedule utilizing cron expression or utilizing periodic schedule templates like hourly, weekly and many others;. This service is light-weight and offers an at-least-once scheduling assure. Maestro engine service will deduplicate the triggering requests to attain an exact-once assure when scheduling workflows.
Time-based triggering is common attributable to its simplicity and ease of administration. However generally, it isn’t environment friendly. For instance, the every day workflow ought to course of the info when the info partition is prepared, not all the time at midnight. Subsequently, on prime of handbook and time-based triggering, we additionally present event-driven triggering.
Sign Service
Maestro helps event-driven triggering over alerts, that are items of messages carrying info akin to parameter values. Sign triggering is environment friendly and correct as a result of we don’t waste sources checking if the workflow is able to run, as an alternative we solely execute the workflow when a situation is met.
Indicators are utilized in two methods:
- A set off to begin new workflow situations
- A gating perform to conditionally begin a step (e.g., information partition readiness)
Sign service objectives are to
- Accumulate and index alerts
- Register and deal with workflow set off subscriptions
- Register and deal with the step gating capabilities
- Captures the lineage of workflows triggers and steps unblocked by a sign
The maestro sign service consumes all of the alerts from totally different sources, e.g. all of the warehouse desk updates, S3 occasions, a workflow releasing a sign, after which generates the corresponding triggers by correlating a sign with its subscribed workflows. Along with the transformation between exterior alerts and workflow triggers, this service can also be chargeable for step dependencies by trying up the acquired alerts within the historical past. Just like the scheduling service, the sign service along with Maestro engine achieves exactly-once triggering ensures.
Sign service additionally offers the sign lineage, which is helpful in lots of circumstances. For instance, a desk up to date by a workflow might result in a sequence of downstream workflow executions. More often than not the workflows are owned by totally different groups, the sign lineage helps the upstream and downstream workflow homeowners to see who depends upon whom.
All providers within the Maestro system are stateless and may be horizontally scaled out. All of the requests are processed by way of distributed queues for message passing. By having a shared nothing structure, Maestro can horizontally scale to handle the states of hundreds of thousands of workflow and step situations on the identical time.
CockroachDB is used for persisting workflow definitions and occasion state. We selected CockroachDB as it’s an open-source distributed SQL database that gives sturdy consistency ensures that may be scaled horizontally with out a lot operational overhead.
It’s arduous to help tremendous massive workflows typically. For instance, a workflow definition can explicitly outline a DAG consisting of hundreds of thousands of nodes. With that variety of nodes in a DAG, UI can not render it nicely. We’ve to implement some constraints and help legitimate use circumstances consisting of a whole lot of 1000’s (and even hundreds of thousands) of step situations in a workflow occasion.
Based mostly on our findings and person suggestions, we discovered that in follow
- Customers don’t need to manually write the definitions for 1000’s of steps in a single workflow definition, which is difficult to handle and navigate over UI. When such a use case exists, it’s all the time possible to decompose the workflow into smaller sub workflows.
- Customers count on to repeatedly run a sure a part of DAG a whole lot of 1000’s (and even hundreds of thousands) instances with totally different parameter settings in a given workflow occasion. So at runtime, a workflow occasion would possibly embrace hundreds of thousands of step situations.
Subsequently, we implement a workflow DAG dimension restrict (e.g. 1K) and we offer a foreach sample that enables customers to outline a sub DAG inside a foreach block and iterate the sub DAG with a bigger restrict (e.g. 100K). Be aware that foreach may be nested by one other foreach. So customers can run hundreds of thousands or billions of steps in a single workflow occasion.
In Maestro, foreach itself is a step within the authentic workflow definition. Foreach is internally handled as one other workflow which scales equally as another Maestro workflow primarily based on the variety of step executions within the foreach loop. The execution of sub DAG inside foreach will likely be delegated to a separate workflow occasion. Foreach step will then monitor and acquire standing of these foreach workflow situations, every of which manages the execution of 1 iteration.
With this design, foreach sample helps sequential loop and nested loop with excessive scalability. It’s straightforward to handle and troubleshoot as customers can see the general loop standing on the foreach step or view every iteration individually.
We goal to make Maestro person pleasant and straightforward to be taught for customers with totally different backgrounds. We made some assumptions about person proficiency in programming languages and so they can convey their enterprise logic in a number of methods, together with however not restricted to, a bash script, a Jupyter pocket book, a Java jar, a docker picture, a SQL assertion, or just a few clicks within the UI utilizing parameterized workflow templates.
Consumer Interfaces
Maestro offers a number of area particular languages (DSLs) together with YAML, Python, and Java, for finish customers to outline their workflows, that are decoupled from their enterprise logic. Customers also can straight discuss to Maestro API to create workflows utilizing the JSON information mannequin. We discovered that human readable DSL is common and performs an vital function to help totally different use circumstances. YAML DSL is the most well-liked one attributable to its simplicity and readability.
Right here is an instance workflow outlined by totally different DSLs.
Moreover, customers also can generate sure varieties of workflows on UI or use different libraries, e.g.
- In Pocket book UI, customers can straight schedule to run the chosen pocket book periodically.
- In Maestro UI, customers can straight schedule to maneuver information from one supply (e.g. an information desk or a spreadsheet) to a different periodically.
- Customers can use Metaflow library to create workflows in Maestro to execute DAGs consisting of arbitrary Python code.
Parameterized Workflows
Plenty of instances, customers need to outline a dynamic workflow to adapt to totally different situations. Based mostly on our experiences, a totally dynamic workflow is much less favorable and arduous to keep up and troubleshooting. As an alternative, Maestro offers three options to help customers to outline a parameterized workflow
- Conditional branching
- Sub-workflow
- Output parameters
As an alternative of dynamically altering the workflow DAG at runtime, customers can outline these adjustments as sub workflows after which invoke the suitable sub workflow at runtime as a result of the sub workflow id is a parameter, which is evaluated at runtime. Moreover, utilizing the output parameter, customers can produce totally different outcomes from the upstream job step after which iterate by these throughout the foreach, go it to the sub workflow, or use it within the downstream steps.
Right here is an instance (utilizing YAML DSL) of backfill workflow with 2 steps. In step1, the step computes the backfill ranges and returns the dates again. Subsequent, foreach step makes use of the dates from step1 to create foreach iterations. Lastly, every of the backfill jobs will get the date from the foreach and backfills the info primarily based on the date.
Workflow:
id: demo.pipeline
jobs:
- job:
id: step1
kind: NoOp
'!dates': return new int[]{20220101,20220102,20220103}; #SEL
- foreach:
id: step2
params:
date: ${dates@step1} #reference a upstream step parameter
jobs:
- job:
id: backfill
kind: Pocket book
pocket book:
input_path: s3://path/to/pocket book.ipynb
arg1: $date #go the foreach parameter into pocket book
The parameter system in Maestro is totally dynamic with code injection help. Customers can write the code in Java syntax because the parameter definition. We developed our personal secured expression language (SEL) to make sure safety. It solely exposes restricted performance and contains extra checks (e.g. the variety of iteration within the loop assertion, and many others.) within the language parser.
Execution Abstractions
Maestro offers a number of ranges of execution abstractions. Customers can select to make use of the supplied step kind and set its parameters. This helps to encapsulate the enterprise logic of generally used operations, making it very straightforward for customers to create jobs. For instance, for spark step kind, all customers must do is simply specify wanted parameters like spark sql question, reminiscence necessities, and many others, and Maestro will do all behind-the-scenes to create the step. If we now have to make a change within the enterprise logic of a sure step, we are able to accomplish that seamlessly for customers of that step kind.
If supplied step sorts should not sufficient, customers also can develop their very own enterprise logic in a Jupyter pocket book after which go it to Maestro. Superior customers can develop their very own well-tuned docker picture and let Maestro deal with the scheduling and execution.
Moreover, we summary the frequent capabilities or reusable patterns from numerous use circumstances and add them to the Maestro in a loosely coupled method by introducing job templates, that are parameterized notebooks. That is totally different from step sorts, as templates present a mix of varied steps. Superior customers additionally leverage this function to ship frequent patterns for their very own groups. Whereas creating a brand new template, customers can outline the listing of required/optionally available parameters with the categories and register the template with Maestro. Maestro validates the parameters and kinds on the push and run time. Sooner or later, we plan to increase this performance to make it very straightforward for customers to outline templates for his or her groups and for all staff. In some circumstances, sub-workflows are additionally used to outline frequent sub DAGs to attain multi-step capabilities.
We’re taking Large Information Orchestration to the subsequent stage and continuously fixing new issues and challenges, please keep tuned. If you’re motivated to resolve massive scale orchestration issues, please be part of us as we’re hiring.
